Surface Finishing Types for CNC Machined Parts

In CNC machining, applying the right surface finishing technique can greatly enhance the surface roughness, appearance, wear resistance, and corrosion protection of a part. Below are some of the most common finishing options for metal CNC parts:

1. As Machined (No Additional Finish)

• Description: The part surface will retain tool marks. Standard roughness is around 3.2 μm (125 μin), but with further finishing it can be reduced to 0.4 μm (16 μin).

• Pros: Maintains the tightest dimensional tolerances.

• Cons: Visible tool marks, relatively rough appearance.

2. Bead Blasting

• Description: High-pressure air guns shoot glass beads onto the surface, creating a uniform matte or satin finish.

• Pros: Low-cost way to achieve a clean, aesthetic look; works on most metals.

• Cons: Can slightly affect critical dimensions and roughness; results depend on operator skill.

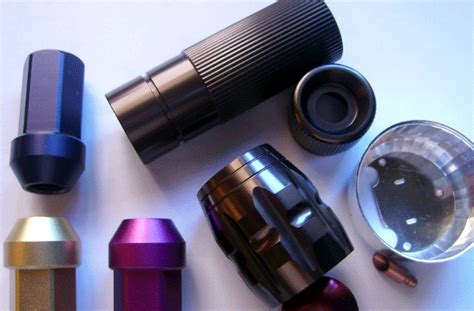

3. Anodizing (Type II & Type III)

• Description: Forms a thin ceramic oxide layer on aluminum or titanium, providing corrosion resistance, wear resistance, and the option for coloring.

• Pros:

• Type II: Decorative, durable, available in multiple colors.

• Type III (Hard Anodizing): Extremely wear-resistant, excellent dimensional control.

• Suitable for small parts and internal cavities.

• Cons:

• Limited to aluminum and titanium.

• More brittle than powder coating.

• Type III is the most expensive option discussed here.

4. Powder Coating

• Description: A polymer layer is electrostatically sprayed onto the part and cured at high temperature, creating a strong protective coating (18–72 μm thick).

• Pros:

• Excellent wear, corrosion, and impact resistance.

• Compatible with all metals.

• Wide color choices.

• Cons:

• Difficult to coat internal features or very small parts.

• Less precise dimensional control compared to anodizing.

5. Electroplating

• Description: A thin layer of metal (nickel, chrome, zinc, gold, silver, etc.) is deposited onto the surface to improve appearance and resistance to corrosion.

• Pros:

• Excellent corrosion protection.

• Can add conductivity or wear resistance.

• Chrome plating creates a mirror-like finish.

• Cons:

• Relatively high cost.

• Uneven coating may affect tolerance.

6. Electroless Nickel Plating

• Description: Uses chemical reactions (instead of electricity) to deposit a nickel-phosphorus alloy layer, offering superior hardness and corrosion resistance.

• Pros:

• Uniform coating even on complex geometries.

• Great wear and corrosion protection.

• Cons: Higher cost compared to basic plating.

7. Black Oxide / Blackening

• Description: Steel parts are treated in an alkaline salt bath, creating a black oxide layer.

• Pros:

• Reduces reflectivity and glare.

• Enhances appearance.

• Low cost.

• Cons:

• Limited protection; often combined with oil to prevent rust.

8. Brushing

• Description: Abrasive belts or sandpaper create consistent linear textures on the part surface.

• Pros:

• Attractive metallic texture.

• Hides minor machining marks.

• Cons: Provides little improvement in wear or corrosion resistance.

9. Polishing / Mirror Finishing

• Description: Achieved by mechanical, chemical, or electrolytic polishing to create a bright, reflective finish.

• Pros:

• Very high surface smoothness.

• Luxurious, premium appearance — often used in medical or decorative parts.

• Cons:

• Expensive and labor-intensive.

• Removes material, may affect dimensional accuracy.

10. Passivation

• Description: Typically applied to stainless steel, where parts are immersed in acid to remove free iron and enhance the protective oxide layer.

• Pros: Improves corrosion resistance without changing the look of the part.

• Cons: No noticeable change in appearance; purely functional.

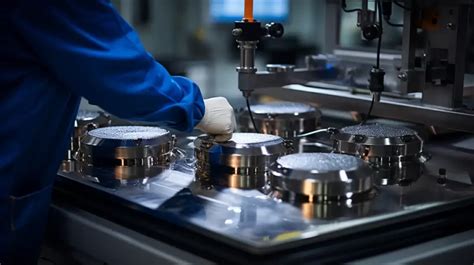

11. Electropolishing

• Description: The part acts as the anode in an electrolytic bath, where the surface is dissolved to leave a smooth and shiny finish.

• Pros:

• Exceptional smoothness, perfect for medical and food-grade components.

• Removes burrs, improves corrosion resistance.

• Cons:

• Higher cost.

• Not suitable for large components.

12. PVD Coating (Physical Vapor Deposition)

• Description: In a vacuum environment, metals or ceramics are evaporated/sputtered onto the part, forming a thin, very hard coating (1–5 μm). Available in finishes like gold, black, gray, or rainbow colors.

• Pros:

• Extremely hard and wear-resistant.

• Dense and corrosion-resistant coating.

• Low friction, smooth surface.

• Premium decorative look (e.g. titanium-gold, black stainless steel).

• Cons:

• Expensive, requires advanced equipment.

• Thin layer — performance still depends on the base material.

• Not suitable for deep internal cavities or complex geometries.

• Typical Applications: Cutting tools, high-end watches, surgical instruments, luxury decorative parts.
