In CNC machining, surface roughness (surface finish) is a critical quality factor that affects the function, lifespan, assembly, and appearance of parts. Whether the component is a gear, watch case, housing, bearing seat, or structural bracket — poor surface finish can lead to mis-fits, poor sealing, accelerated wear, reduced service life, or poor aesthetics.
Below is an overview of the principles, influencing factors, and how we ensure high-quality surface finishes for our clients.
Surface roughness refers to the microscopic hills and valleys left on a part after machining. The most common parameter used is Ra (Roughness Average), measured in micrometres (µm). A lower Ra value indicates a smoother surface.
Other parameters such as Rz (peak to valley height) and RMS (root-mean-square roughness) may also be used, especially for critical or bearing surfaces.

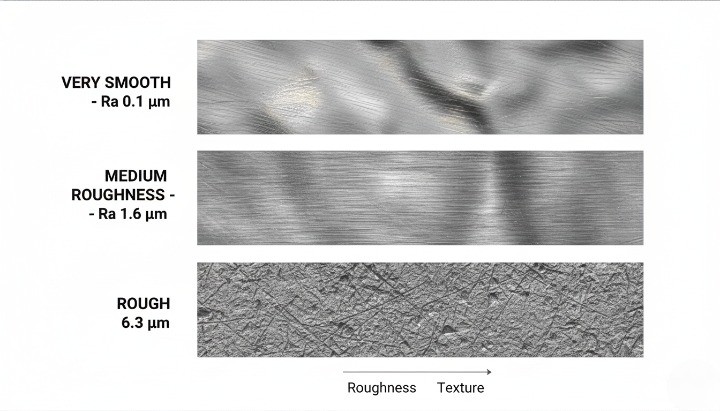

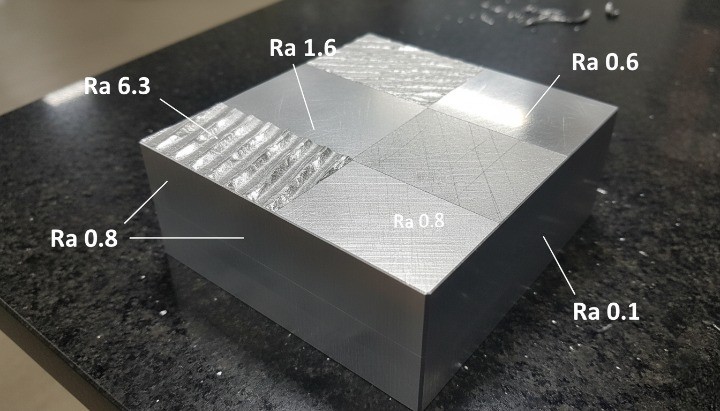

Typical Ra levels and their applications:
| Ra (µm) | Surface Quality | Typical Use / Application |
|---|---|---|
| ~3.2 µm | Standard, machined finish with visible tool marks | Housings, structural parts, non-critical components |
| ~1.6 µm | Fine machining, minimal tool marks | Medium-precision parts, enclosures, parts needing closer fits |
| ~0.8 µm | Smooth finish, finer texture; may require finishing pass | Precision components, sealing surfaces, parts needing improved wear or fit performance |
| ≤ 0.4 µm | Very smooth / near mirror finish (often with polishing or grinding) | High-precision surfaces, bearings, hydraulic components, aesthetic parts requiring premium finish |
Many factors influence the final surface finish of a machined part. Key ones include:
Machining Parameters — feed rate, cutting speed, depth of cut. For instance: higher feed rates tend to worsen roughness; shallow cuts and fine finishing passes yield smoother surfaces.
Tool Condition & Geometry — sharp, well-defined tools with appropriate geometry and good coating produce cleaner cuts and better surface finish. Worn or inappropriate tools degrade finish quality.
Machine Rigidity & Stability — machine vibrations, unstable clamping, or insufficient rigidity can cause chatter marks or irregularities, harming surface finish.
Material Properties & Workpiece Structure — different materials, hardness, grain structure, and internal stresses can influence how they cut and how surface finish turns out.
Cooling / Lubrication & Chip Removal — proper coolant or lubrication, good chip evacuation, and thermal control help reduce heat-related defects and improve finish quality.
Post-Processing (Optional) — for parts needing higher finish quality, additional processes such as grinding, polishing, lapping, or surface treatments (coating, bead-blast, anodizing) can further refine or change the final surface appearance/texture.
At our CNC workshop, we combine experience, equipment, and quality controls to deliver reliable surface finish. Key strengths:
Advanced CNC capabilities — 3-axis, 4-axis, and 5-axis machining; precision turning; gear machining; etc. This allows us to tailor machining strategy (rough → finish → optional post-process) for different part types and requirements.
Experienced team & tooling management — we maintain tooling condition strictly; choose proper tool geometry and coatings; monitor tool wear; ensure stable machining setups.

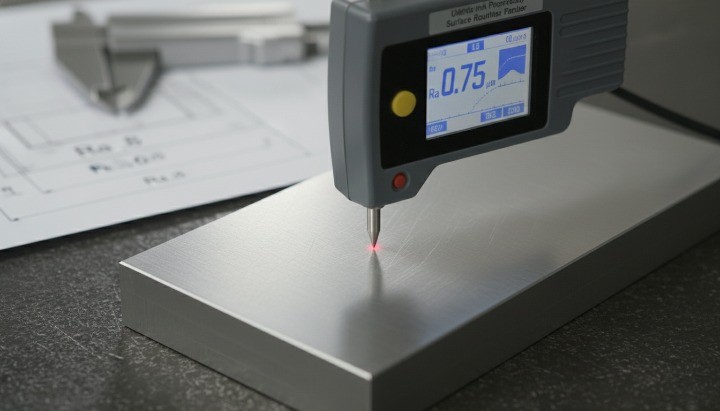

Quality control & surface finish inspection — for critical surfaces (sealing surfaces; mating surfaces; cosmetic surfaces), we can measure roughness (Ra/Rz) and record data to ensure parts meet specifications before delivery.
Flexible finishing & post-processing options — if required, we can offer grinding, polishing, surface treatment, bead-blasting, or coating according to customer requirements.
Material versatility — we process various materials (steel, stainless steel, aluminum, copper, etc.), and can advise suitable surface finish ranges depending on material and part function.
This means whether you need rugged structural parts, medium-precision housings, high-precision sealing components, or premium cosmetic parts — we can manufacture parts that meet both your functional and surface finish specifications.
To make sure your parts meet your expectations, we suggest:
Specify roughness requirements on your drawings or RFQs, using Ra (and/or Rz) values with units (µm or µin), especially for critical surfaces (sealing faces, mating faces, visible surfaces).

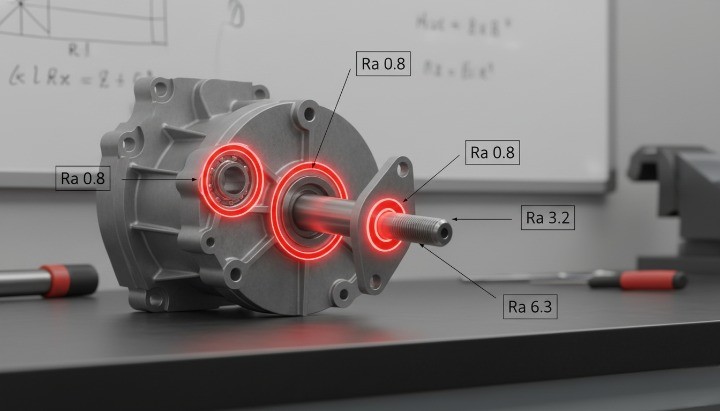

Divide surfaces into categories:
Critical surfaces (sealing, bearing, mating) — tighter roughness (~0.4–0.8 µm)
Functional surfaces (mounting faces, housings, general mechanical parts) — medium roughness (~1.6–3.2 µm)
Non-critical / hidden surfaces (internal features, structural supports) — standard finish (~3.2 µm or default)
Consider intended post-processing or surface treatment (anodizing, plating, coating, polishing, bead-blast). Note that such treatment may change the appearance and texture — we can advise on realistic surface finish after post-process.
Balance cost, functionality, and lead time — finer finishes add machining time, possible secondary operations, and cost. Not all surfaces need mirror-like finish; specifying only where necessary is more efficient.
Communicate clearly — tell us which surfaces are critical, which are for appearance, which are for structural purposes, and we will confirm feasibility and recommend appropriate process.
Surface roughness in CNC machined parts is not just about aesthetics — it affects performance, fit, wear, sealing, lifespan, and final quality. The goal is not always “as smooth as possible,” but “fit for purpose and consistent.”
With our experience, equipment, tooling management, and quality controls, we are well positioned to provide parts with surface finishes ranging from standard industrial roughness to high-precision finishes (including mirror-like surfaces), based on your needs.
