When designing custom metal components for prototypes or production, engineers and product developers often face a key decision: metal 3D printing or CNC machining. Both are trusted industrial manufacturing methods, yet they operate on completely different principles, with unique strengths, limitations and ideal use cases. Selecting the right process directly impacts part precision, mechanical performance, lead time and total project cost. This guide breaks down the core differences to help you pick the best solution for your project.
Metal 3D Printing (Additive Manufacturing) 3D printing builds components layer by layer from metal powder. It is an additive process that only uses material where the part exists. No complex custom fixtures or tooling are required before production, making it flexible for highly complex geometries.

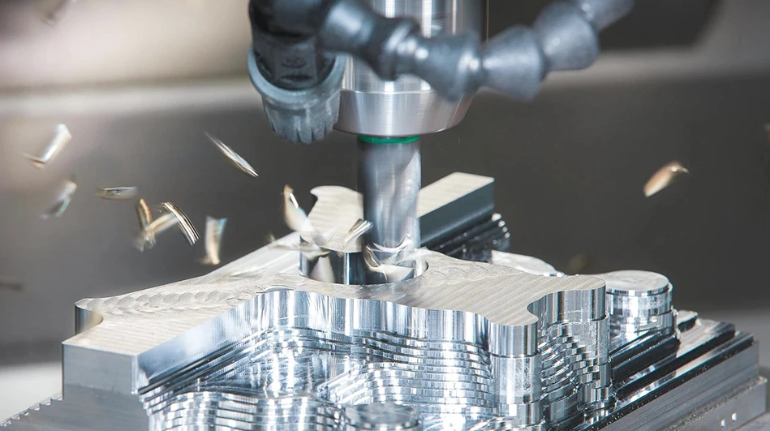

CNC Machining (Subtractive Manufacturing) CNC machining starts with a solid metal billet or bar stock. Computer-controlled cutting tools remove excess material to carve out the final part shape. It is a subtractive manufacturing method relying on programmed tool paths and workpiece clamping.
3D printing unlocks nearly unlimited design freedom. It easily manufactures hollow bodies, internal cooling channels, lattice structures and intricate hidden cavities that cannot be achieved by conventional machining. Designers can optimize parts for lightweighting without assembly constraints.
CNC machining is restricted by cutter movement. Tools must physically reach every surface of the workpiece. Deep narrow internal cavities, fully enclosed internal passages and ultra-complex undercuts are either impossible or extremely expensive to machine.
CNC machining delivers excellent dimensional consistency and superior surface roughness right after cutting. Tight tolerances are easier to hold for most metal workpieces. Secondary surface treatments like anodizing or coating can be applied directly after deburring.
Industrial metal 3D printing achieves reliable accuracy, but printed parts naturally show layer lines. Post-processing such as sandblasting, polishing or secondary CNC finishing is usually needed to meet tight tolerance or high smoothness requirements.
CNC metal parts retain the original properties of solid wrought metal stock. The material has uniform density, stable tensile strength and consistent fatigue resistance, with no layer boundaries. It is the preferred choice for high-load structural components.
3D printed metal parts are formed by melting stacked powder layers. Mechanical properties are strong but anisotropic; performance may vary slightly along different axes. It works well for lightweight optimized designs where weight reduction is prioritized.
3D printing has short setup time. Once the 3D model file is ready, production can start quickly. It shines for urgent prototypes and very small batches, cutting weeks off lead times for complex custom parts.
CNC machining requires CAM programming, workpiece clamping, tool selection and fixture preparation. The pre-production setup takes longer. Once set up, it runs efficiently for medium-to-large batch orders.
For low volumes (1–50 pieces), especially complex geometry parts, metal 3D printing often delivers better value. There is no high fixture investment.
CNC machining becomes cost-effective at medium and high volumes. For simple or moderately complex solid metal parts, the unit price drops significantly as order quantity increases.
Parts with complex internal structures or integrated lattice lightweight designs
Lightweight industrial and aerospace custom components
Urgent prototype verification and functional testing
Low-volume one-off custom metal parts
High-precision mechanical structural components
Parts requiring excellent surface finish and tight dimensional tolerances
Medium and mass production standard metal components
Heavy load-bearing parts that demand stable, consistent metal mechanical performance
Metal 3D printing has its drawbacks. Unit cost remains high for large batch orders. Layer texture is inherent, and the maximum build size is limited by printer capacity. Material options are narrower compared with CNC machining.
CNC machining generates material waste from cutting solid stock. It cannot fabricate certain complex internal geometries. For one-off small custom parts, fixture and programming costs can raise the total budget.
Many advanced projects adopt hybrid manufacturing: use metal 3D printing to form the complex base geometry, then apply CNC machining for critical precision surfaces. This method combines the design freedom of additive manufacturing and the tight tolerance capability of subtractive machining. It is the premium solution for high-performance complex metal industrial parts.
There is no universal “better” process between 3D printed metal parts and CNC machined metal parts. Choose 3D printing if you need complex geometries, lightweight structures, quick prototypes or very small batches. Choose CNC metal machining if you need high precision, consistent bulk material performance, smooth surfaces or medium/large batch production.
If you are unsure which manufacturing method fits your drawing, send us your CAD files and requirements. Our engineering team will evaluate your project and provide custom manufacturing solutions for your precision metal components.
