For CNC machined aluminum components, selecting the right surface finish directly impacts corrosion resistance, bonding performance, dimensional tolerance and functionality. Many engineers and product buyers struggle to decide between chemical conversion coating, anodizing, micro arc oxidation and ceramic coating.

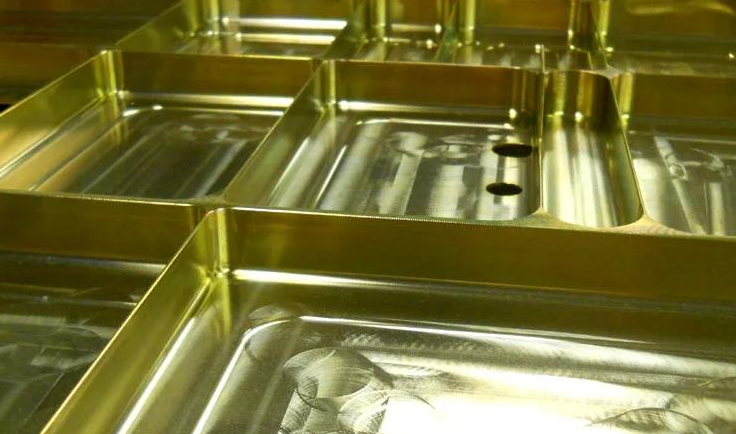

Chemical conversion coating, also widely called chromate conversion coating or Alodine, is a popular inorganic surface treatment for aluminum. Unlike painting or plating that deposits a new material onto the substrate, this finish forms a protective thin film through chemical reaction with the aluminum base material. The coating is only a few microns thick, so it barely changes the part dimension, which makes it ideal for precision CNC machined parts.
There are two main categories: traditional chromate conversion coating and eco-friendly chrome-free conversion coating that meets RoHS compliance requirements. Common colors include clear and golden iridescent finishes.
Reliable corrosion protection The conversion film offers good anti-corrosion performance for aluminum parts, preventing oxidation and rust during storage and transportation.
Excellent adhesion base for glue or paint This is one of its biggest advantages. The surface creates a perfect bonding substrate. If you need to attach neoprene rubber or apply paint on aluminum parts later, chemical conversion coating significantly improves bonding strength.
Negligible dimensional change The ultra-thin film will not disrupt tight tolerances on precision CNC components.
Retains electrical conductivity Unlike anodizing which creates an insulating layer, conversion coating keeps the surface conductive. It is a great option for parts that require electrical contact while needing rust protection.
Fast lead time and cost efficiency The treatment process is quick and affordable compared with micro arc oxidation or hard anodizing, suitable for prototype samples and mass production.
Chemical conversion coating is widely adopted across industries for CNC aluminum parts:
Communication housings and heat sinks
Instrument and testing equipment structural components
Parts requiring adhesive assembly or subsequent painting
Semiconductor and aerospace prototype components
Precision fixtures and custom mechanical parts
Finish | Thickness | Conductive | Bonding | Wear Resistance |
|---|---|---|---|---|
Chemical Conversion Coating | Very thin | ✅ Yes | ✅ Excellent | Low |
Anodize / Hard Anodizing | Medium | ❌ No | Good | High |
Micro Arc Oxidation (MAO) | Thick | ❌ No | Fair | Very high |
Ceramic Coating | Medium | ❌ No | Good | High |
Chemical conversion coating excels when you need conductivity, strong glue adhesion and minimal dimensional shift. For heavy wear scenarios, hard anodizing or micro arc oxidation would be more suitable.
At JV Precision, we provide one-stop service including 5-axis CNC machining plus chemical conversion coating for aluminum parts.
Supported aluminum grades: 6061, 6063, 7075
Two options available: Chromate conversion coating and RoHS compliant chrome-free conversion coating
Full quality control: Film inspection and salt spray testing can be arranged upon request
Flexible order: Support prototype sampling, small batch and mass production
To help you make the best decision, it is important to understand its limitations. The wear resistance of conversion coating is lower than anodizing or micro arc oxidation. It is not recommended for parts that will face continuous friction or harsh long-term outdoor exposure. For those demanding working conditions, we suggest hard anodizing, ceramic coating or MAO treatment.
Only a tiny fraction of a micron. It will not affect tight tolerances for precision machined components.
Yes. This is a major difference from standard anodizing.
Yes. It works very well as a base layer for adhesive bonding.
Yes, our chrome-free option meets RoHS requirements.
If you are looking for chemical conversion coating service for your custom CNC aluminum parts, our engineering team is ready to support your project. Send us your drawings for sample evaluation and quotation.
