Quality characteristics
*High-precision marble base and column which is high measurement accuracy and high precision positioning at high speed
* Taiwan high precision linear guide rail and ball screw to ensure walking accuracy and positioning accuracy
*Three axes are all imported HIWIN high-precision linear guides and grinding-grade ball screw drive. The noise is low and the vibration is small, and the dynamic geometric error is minimal.
* Fully closed loop control with imported servo system to achieve high precision and high speed measurement
* Panasonic full-closed-loop servo motor, speed can be adjusted
* RSF high precision non-contact grating scale with resolution 0.0005mm
*Programmable 5-ring 8-zone annular surface light to meet different angle lighting requirements
*Fully automatic zoom lens, no need re-calibrate when changing magnification, save calibration time and avoid human error
* Equipped with comprehensive CNC measuring software, automatic programming, automatic measurement,
*Optional Renishaw contact probe for height, depth and other 3D measurement
*Optional KEYENCE laser displacement sensor for roughness, flatness surface measurement
*Can be ordered any sizes.
Technical Specifications:

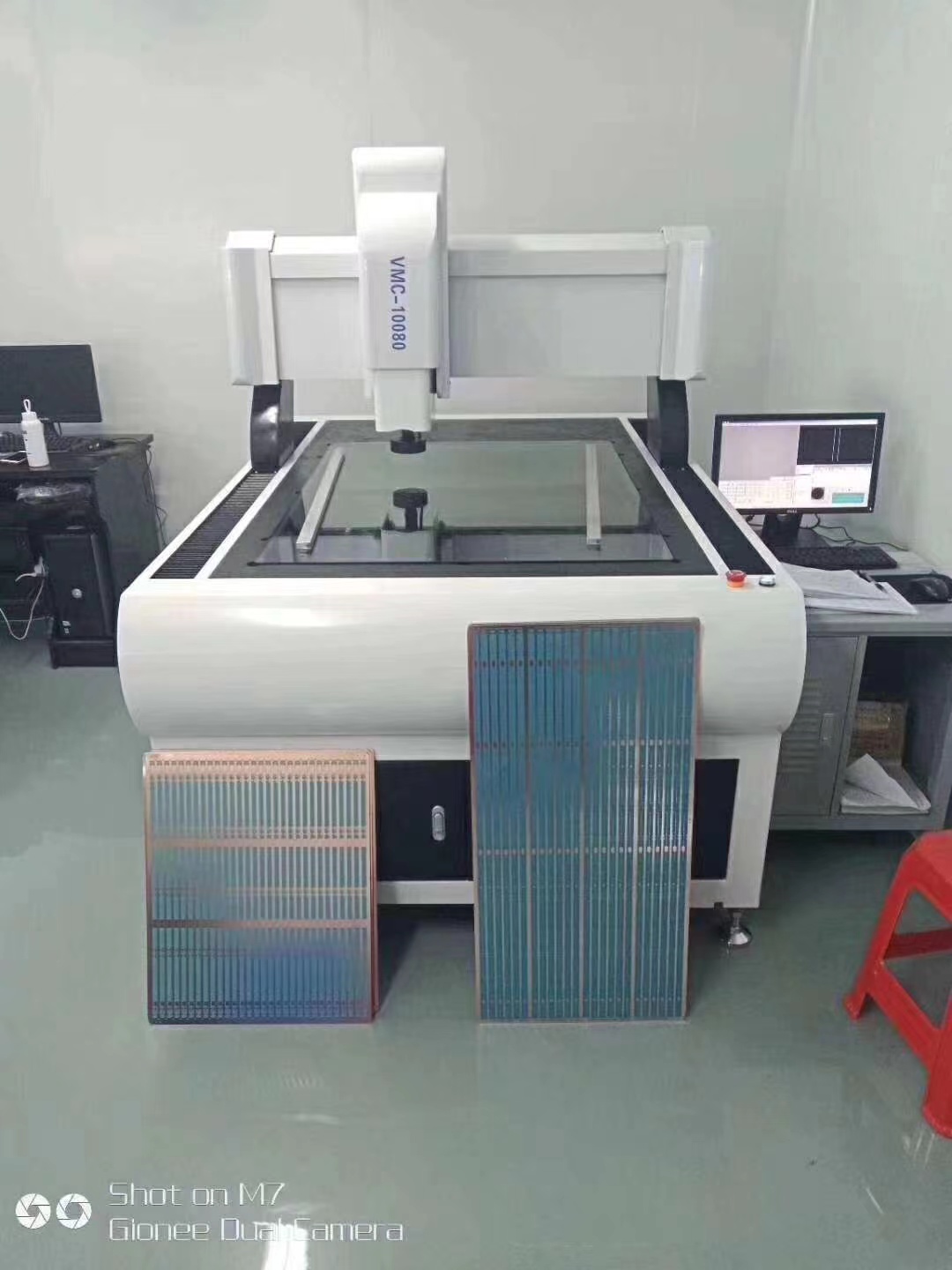

Model VMC-6080 VMC-1080 VMC-2515
Measuring range(mm) 600*800*200 1000*800*200 2500*1500*200
Size(mm) 2000*1400*1600 2300*1500*1600 4000*3000*1600
Platform load capacity 15kgs
Operating mode The mouse or a rocker
Magnification Optical Magnify Zoom:0.75X-4.5X; Image Magnify Zoom:28X-230X
Resolution 0.001mm
Accuracy (3+L/200)um
Repeatability 2um
CCD 700TVL color CCD
Measuring System CNC Automatic Measuring System
Applicable environment Temperature:20degree±5degree; Humidity:45%~75%
Power supply (110V/220V)±10% 50Hz/60Hz
Application:
Widely used in measurement for larger size checking for example: LCD screen, PCB board, film, larger glass products, mobile phone panel, LED display and othes inspection.
Measuring Elements (Length, width, height, spacing between holes, thickness, arc diameter, radius, slot angle, R angle, PIN spacing, etc.)
Geometric tolerance (Perpendicularity, flatness, concentricity of two circles, true roundness, straightness)
After Sales Service
The customer can send the engineer to our company to complete the inspection of the goods, as well as the installation and training lessons, but the Visa fee, round tickets, accommodation, eating, and the allowance will be on customer's side.
Or we will send the engineers to install and test the machines and have training lessons abroad, but the Visa fee, round tickets, accommodation, eating, and the allowance of 80USD per day per person will be on customer's side.
