Swiss-type CNC machining is an advanced manufacturing process designed for small-diameter, high‑precision, complex components. It is widely used in medical devices, watchmaking, precision instruments, aerospace, automotive, and other high-end industries.
Swiss-type CNC machining uses a Swiss-type lathe to manufacture parts from bar stock through continuous feeding.
The technology originated in the Swiss watch industry, where extremely small, precise, and repeatable components were required. With the evolution of multi‑axis CNC systems, Swiss machines have become the industry standard for producing tight‑tolerance, small and geometrically complex parts.

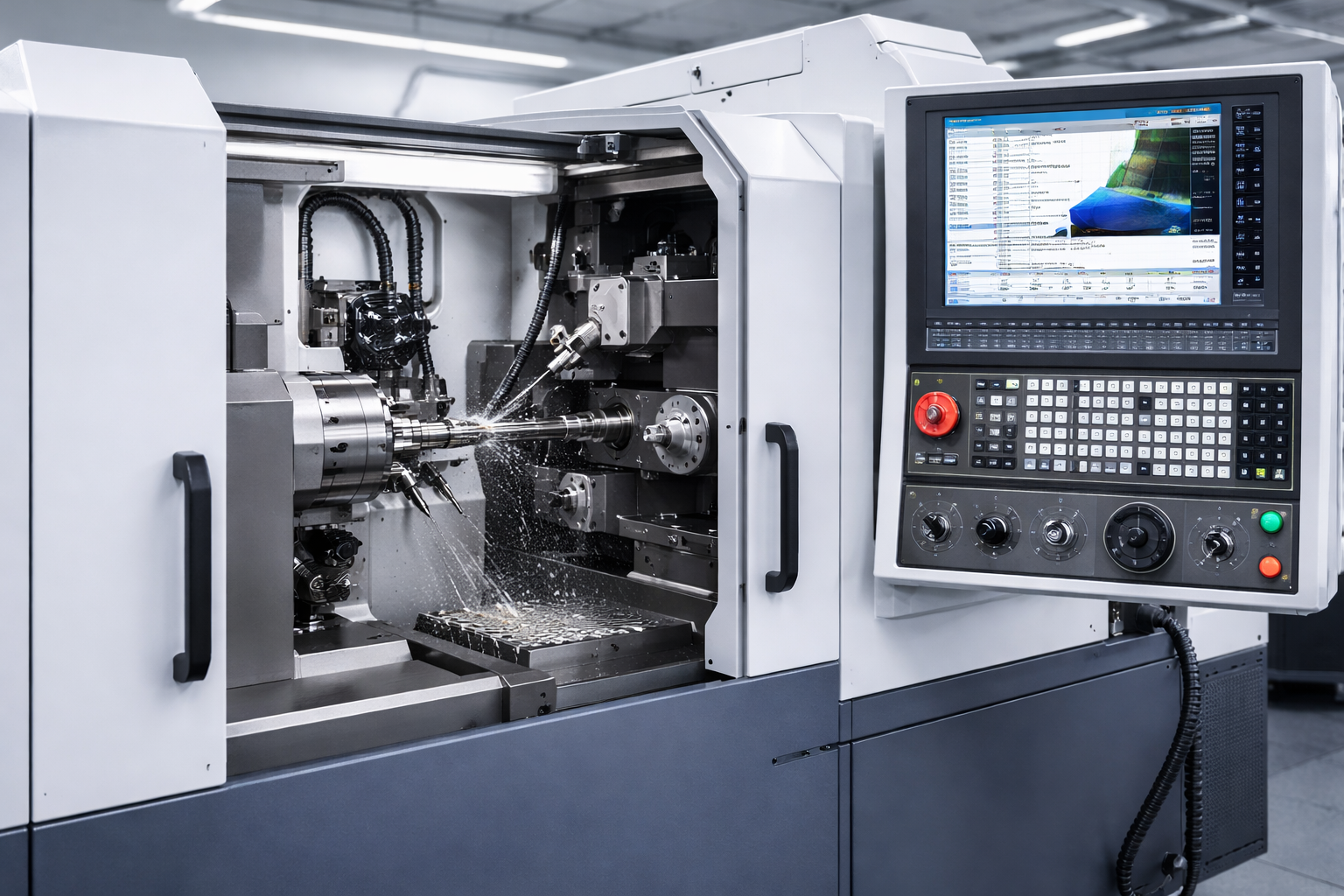

（1）Key Characteristics of a Swiss-Type Lathe
Guide bushing that supports the workpiece close to the cutting zone
Sliding headstock that feeds material through the bushing
Multi‑axis, multi‑tool simultaneous machining
Ability to complete multiple operations in a single setup
These features deliver exceptional dimensional stability, surface quality, and repeatability in production.
During machining, the bar stock advances through the guide bushing while the tools remain positioned near the support point. Only a very short length of material is exposed to cutting forces.
This design:
Minimizes deflection
Suppresses vibration
Maintains concentricity on long, slender components
As a result, Swiss machines can reliably maintain tolerances down to ±0.0001 in (±0.0025 mm) under the right conditions.
Modern Swiss-type lathes often include a main spindle, sub‑spindle, and multiple live tooling stations, allowing:Turning、Milling、Drilling、Tapping、Boring
to be performed in one cycle. Fewer transfers mean higher accuracy and faster throughput.
Swiss machining is built for automated production:
CNC programs manage feeds, speeds, and tool paths
Bar feeders supply material continuously
Sub‑spindles handle back‑side operations automatically
This setup is ideal for medium‑to‑high volume runs requiring long, stable production hours.
Typical tolerance: ±0.0005 in
High‑precision applications: up to ±0.0001 in
This consistency is critical for assemblies where performance and safety depend on exact geometry.
Low vibration and stable cutting commonly achieve surface roughness around Ra 0.4–0.8 μm, often eliminating secondary finishing.

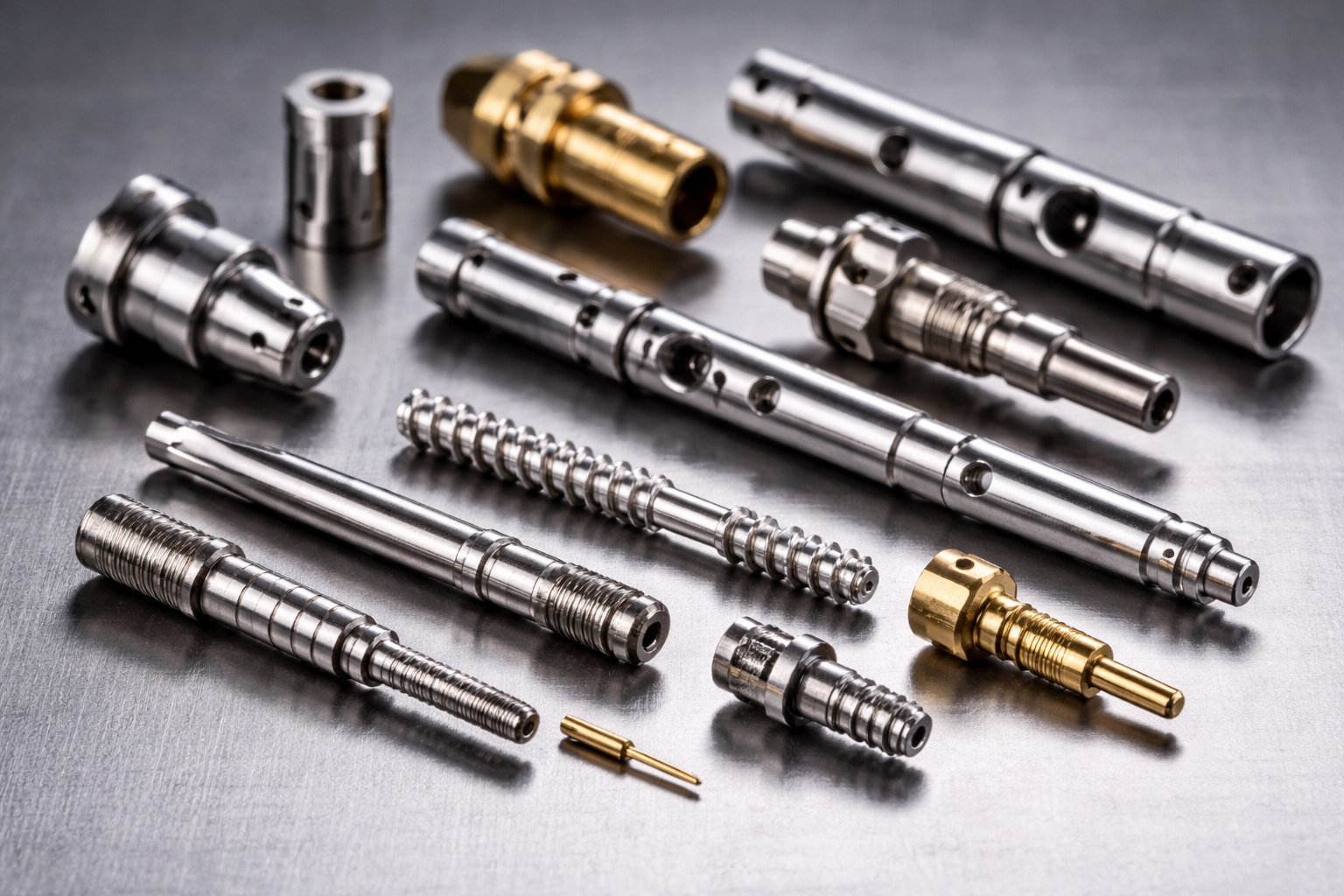

Swiss machining performs exceptionally well for:

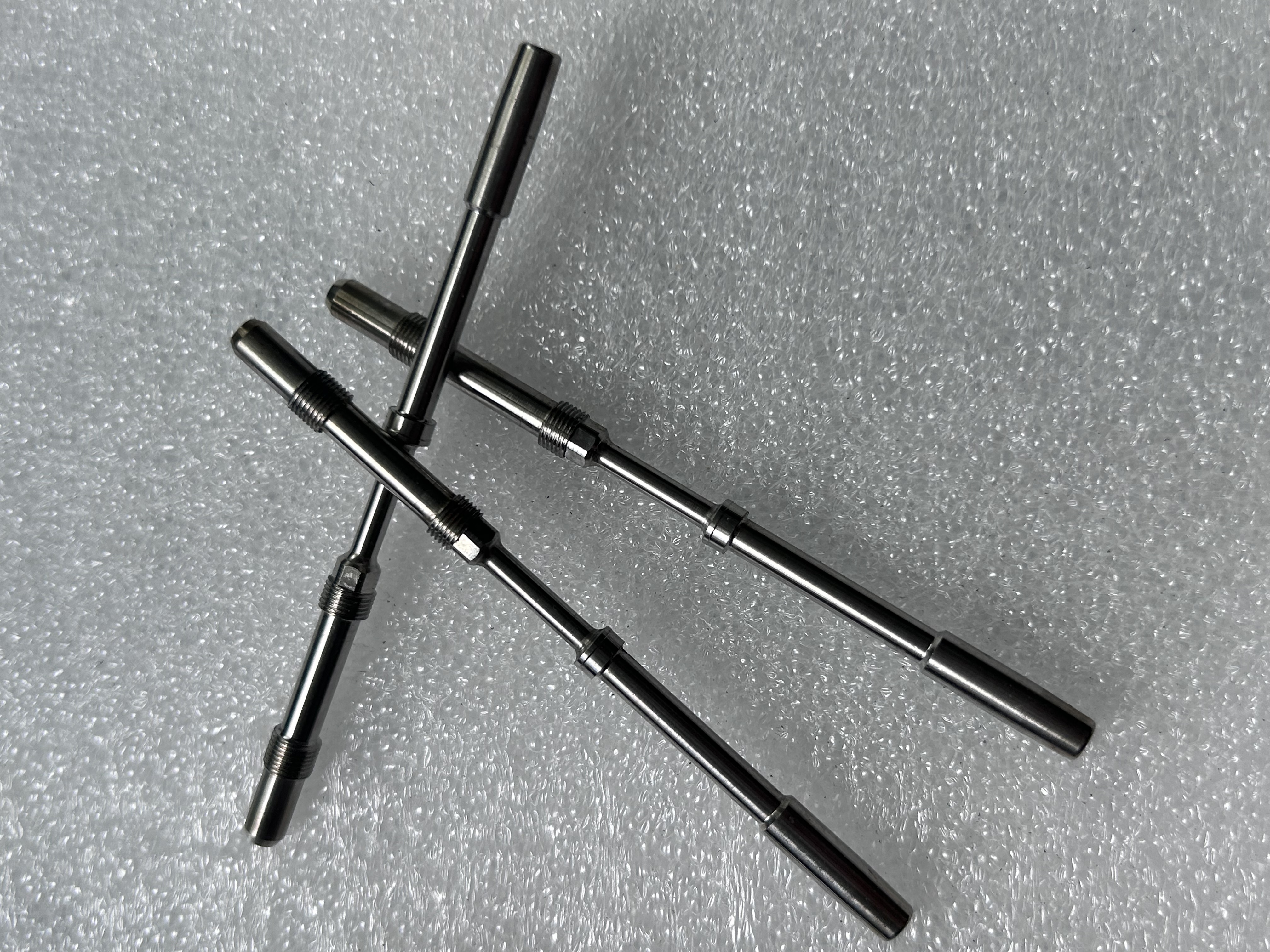

Small shafts
Components with cross holes or slots
High length‑to‑diameter ratios
Micro precision features
Simultaneous operations and automation reduce manual handling, which lowers cost per part in volume production.
Bone screws
Dental implants
Surgical instruments
Catheter and endoscopic components
Arbors
Miniature gears
Micro transmission parts
Precision fasteners
Fuel and hydraulic components
Injector parts
Sensor housings
Micro connectors and terminals
| Category | Swiss-Type CNC | Conventional CNC |
|---|---|---|
| Workpiece support | Near-tool guide bushing | Chuck or centers |
| Best for | Small, long, complex parts | Larger, simpler geometries |
| Achievable accuracy | Very high | Moderate to high |
| Batch consistency | Excellent | Good |
Swiss machining excels in medium‑to‑high volumes, where repeatability and cycle time optimization generate clear value.
Common maximum diameter: ≤ 32 mm
Particularly suitable for multi‑feature, multi‑axis geometries
Compatible materials include aluminum, stainless steel, titanium, engineering plastics, and nickel‑based alloys. Tougher materials and tighter tolerances will influence cost and lead time.
Swiss-type CNC machining is a specialized solution for manufacturing high‑precision, highly consistent, and complex small components. When your project demands tight tolerances, superior surface quality, and reliable volume production, Swiss machining is often the optimal path.
